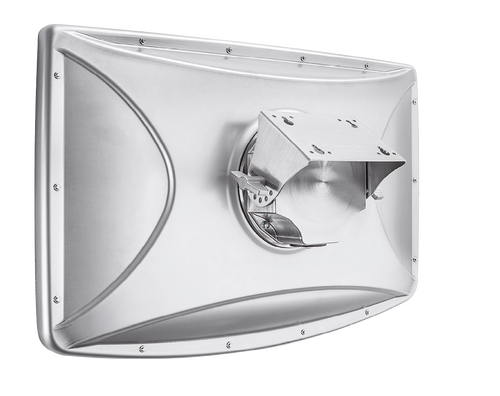

Wall mount BSW-V2 - Bayonet holder with IP69 grommet

Effective cleaning including protected cable management

The wall brackets are made entirely of stainless steel and are therefore resistant to cleaning agents, acids and alkalis commonly used in the industry.
All connections are located inside the wall bracket and are therefore protected from contamination and damage. This enables safe and effective cleaning of the entire system.

Use of standard cables

Thanks to the CAITRON sealing grommet with compression mechanism, standard cables can be used with the BSW-V2 wall bracket without having to be disconnected or modified.

Bayonet system

The connection to the IP69 HMI is easy via a bayonet system. This also enables assembly by just one person.

Hygienic screws
Variable incline
Standard cables

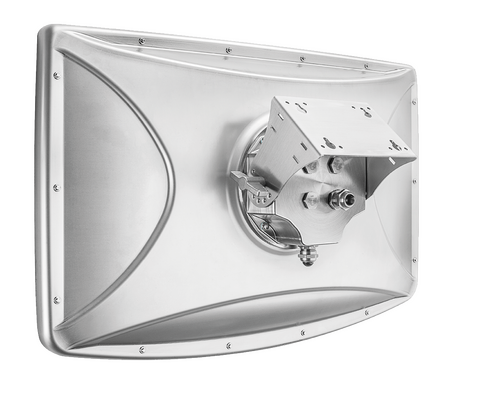

Wall mount BSW-KV - Bayonet system with cable glands

Effective cleaning including protected cable management

The wall brackets are made entirely of stainless steel and are therefore resistant to cleaning agents, acids and alkalis commonly used in the industry.
All connections are located inside the wall bracket and are therefore protected from contamination and damage. This enables safe and effective cleaning of the entire system.

Bayonet system

The connection to the IP69 HMI is easy via a bayonet system. This also enables assembly by just one person.

Hygienic screws
Variable incline
Cable glands

Wall mount RSW - Bayonet system with pipe routing

Effective cleaning including protected cable management

The wall brackets are made entirely of stainless steel and are therefore resistant to cleaning agents, acids and alkalis commonly used in the industry.
With the RSW wall bracket, the cables are routed in the same way as the support arm systems, completely protected within the bracket and the pipe system. This enables simple and effective cleaning of the entire system and protects connecting cables from damage and contamination.

Individually expandable wall mounting

The RSW wall bracket offers versatile expansion options.
A keyboard holder, barcode scanner holder or an operating module with emergency stop and function keys can be conveniently attached to the holder.

Bayonet system

The connection to the IP69 HMI is easy via a bayonet system. This also enables assembly by just one person.

Support arms

Versatile application possibilities

The support arm systems are versatile and can be adapted to the Rittal CP40 system. The systems can be installed rigidly or with rotating elements as swivel arms. The adapter for connection to the pipe can be attached in all directions (up, down, left, right). L and U profiles are available for further assembly. This enables versatile installation, whether on the wall, from the ceiling, on machines or clean room tables.

Effective cleaning including protected cable management

The support arm systems are made entirely of stainless steel and are therefore resistant to the usual cleaning agents, acids and alkalis.
In addition, the cable routing is completely protected within the support arm. This enables simple and effective cleaning of the entire support arm.



Bayonet system

The connection to the industrial PC is easy via a bayonet system. This also enables assembly by just one person.

No screws
Can be mount in 4 directions
Protected connectors
L-& U-profiles

Add-ons: Keyboard and barcode scanner holders

Keyboard holder

The support arm systems can be expanded with keyboard holders. The brackets are made entirely of stainless steel and have no screw connections. Depending on the keyboard model, the keyboard can be magnetically fixed to the holder.

Barcode scanner holder

In addition to a keyboard holder, the support arm systems also offer the option of adding a barcode scanner holder. The bracket can be left, right or both ends at the same time.

Integrated swivel
No screws
Scanner holder
L-& U-profiles

Workstations

Modular structure

The workstation has a modular structure and can therefore be configured individually according to your requirements.
This enables the connection of storage areas, keyboard holder, built-in keyboard, emergency stop, function key module and barcode scanner with holder.

Hygienic Design

The elements of the workstation are made entirely of stainless steel. They have smooth surfaces and are resistant to common cleaning agents, acids and alkalis. In addition, the cable routing is completely protected within the workstation. This enables simple and effective cleaning of the entire system.

Available as mobile or fixed version.

The workstations can optionally be used with castors for mobile use or with height-adjustable feet.

Laboratory workplace

Tested cleanroom suitability up to GMP A / B

The laboratory workstation of the CR series has been tested by the Fraunhofer Institute and can be used up to clean room class GMP A / B.



Convenient cleaning

The holder for the laboratory workstation is made entirely of stainless steel and has smooth, easy-to-clean surfaces.

Bayonet system and adjustable inclination

The IP69 HMI can be conveniently attached to the laboratory workstation using a bayonet lock. The inclination can be individually adjusted using certified, cleanroom-compatible wing screws.

Side view
Back view
Variable angle of inclination
Cable management
